TTM Automotive Floor Pan Automated Welding Fixtures

Product Name:Floor Pan Welding Fixtures

Welding fixture is a set of flexible fixtures for welding fixation, compression and positioning. It is mainly used for welding various weldable materials, large, medium and small materials.

TTM made this Welding Fixtures for Floor Pan in 2021


Product Detail

Product Tags

Video

Specification

Fixture Type:

Floor Pan Welding Fixtures

Quantity:

Welding Fixtures: 6 Sets

Material:

Metal

Exporting Counties:

Canada

Year:

2021

Product Details

2
6
5
WPS图片2

Detailed Introduction

Welding fixture is a set of flexible fixtures for welding fixation, compression and positioning. It is mainly used for welding various weldable materials, large, medium and small materials. Car bottom guard generally refers to the guard plate of the car engine. It is an engine protection device that is customized according to different models. It is classified into hard plastic resin, steel, aluminum alloy and plastic steel according to the production material.

TTM made these welding fixture for Floor Pan in 2021.

The Working Flow

1. Received the purchasing order -——-> 2. Design -——-> 3. Confirming the drawing/solutions -——-> 4. Prepare the materials -——-> 5. CNC -——-> 6. CMM -——-> 6. Assembling -——-> 7. CMM-> 8. Inspection -——-> 9. (3rd part inspection if need) -——-> 10. (internal/customer on site) -——-> 11. Packing(wooden box) -——-> 12. Delivery

Manufacturing Tolerance

1. The Flatness of Base Plate 0.05/1000
2. The Thickness of Base Plate ±0.05mm
3. The Location Datum ±0.02mm
4. The Surface ±0.1mm
5. The Checking Pins and Holes ±0.05mm

TTM Fixture Solutions

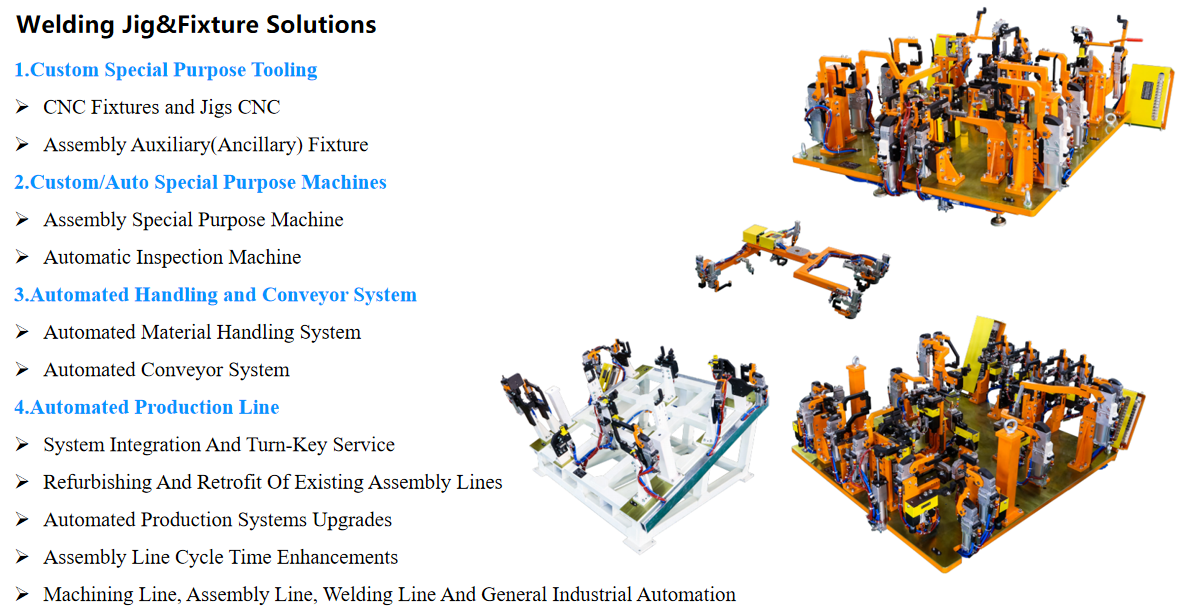

TTM welding jig fixture solutions
