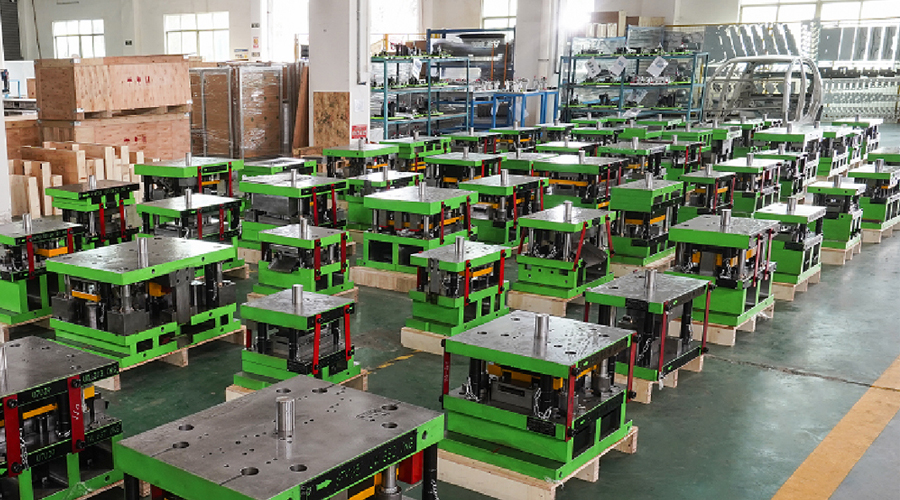

A stamping die, often simply referred to as a “die,” is a specialized tool used in manufacturing processes, specifically in the field of metalworking and sheet metal fabrication. It is used to shape, cut, or form metal sheets into various desired shapes and sizes. Stamping dies are a crucial component of the metal stamping process, which is widely used in industries such as automotive, aerospace, electronics, and appliance manufacturing.

Here’s a breakdown of the key aspects of a stamping die and its role in the manufacturing process:

1. Die Types:
   • Blanking Die: Used to cut out a flat piece of material from a larger sheet, leaving behind the desired shape.
   • Piercing Die: Similar to a blanking die, but it creates a hole or holes in the material rather than cutting out a whole piece.
   • Forming Die: Used to bend, fold, or reshape the material into a specific form or shape.
   • Drawing Die: Used to pull a flat sheet of material through a die cavity to create a three-dimensional shape, such as a cup or a shell.
2. Components of a Stamping Die:
   • Die Block: The main part of the die that provides support and rigidity.
   • Punch: The upper component that applies force to the material to cut, shape, or form it.
   • Die Cavity: The lower component that holds the material and defines the final shape.
   • Strippers: Components that help release the finished part from the punch after each stroke.
   • Guide Pins and Bushings: Ensure proper alignment between the punch and die cavity.
   • Pilots: Assist in the accurate alignment of the material.
3. Die Operation:
   • The die is assembled with the material to be stamped placed between the punch and the die cavity.
   • When force is applied to the punch, it moves downward and exerts pressure on the material, causing it to be cut, shaped, or formed according to the design of the die.
   • The process is usually performed in a stamping press, which provides the necessary force and controls the movement of the punch.
4. Die Material:
   • Dies are typically made from tool steel to withstand the forces and wear associated with the stamping process.
   • The choice of die material depends on factors such as the type of material being stamped, the complexity of the part, and the expected production volume.

Stamping dies play a vital role in mass production, as they allow manufacturers to create consistent, high-quality parts with minimal variation. The design and engineering of stamping dies are essential to achieve accurate dimensions, tolerances, and surface finishes in the stamped parts. Computer-aided design (CAD) and simulation tools are often used to optimize die designs before they are manufactured.

Overall, stamping dies are a fundamental tool in modern manufacturing, enabling the efficient production of a wide range of products from various types of sheet metal and other materials.
