Robotic welding has revolutionized the manufacturing industry by offering unparalleled precision, speed, and consistency. However, the success of robotic welding systems heavily relies on the design of welding fixtures. These fixtures are critical for holding workpieces in place during the welding process, ensuring accuracy, repeatability, and safety. As industries demand higher efficiency and adaptability, the design of robotic welding fixtures has evolved to incorporate advanced technologies and innovative methodologies.

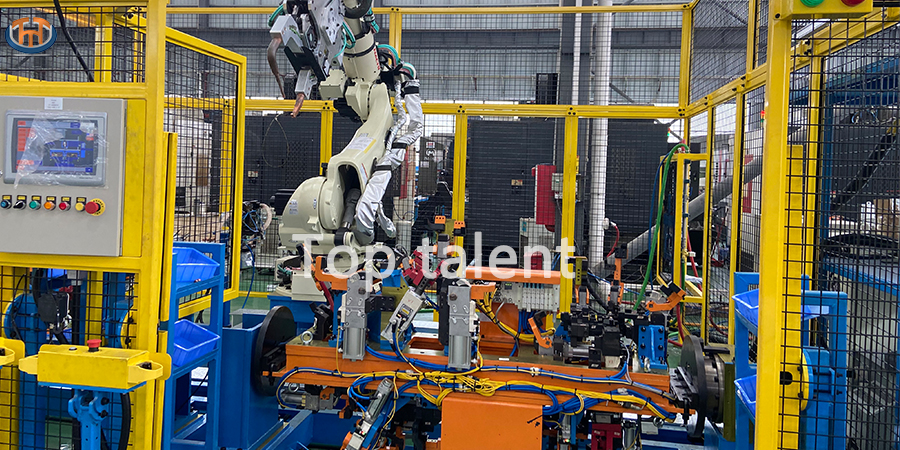

The Role of Fixtures in Robotic Welding
Welding fixtures serve as the backbone of robotic welding systems. They are responsible for securely clamping and positioning workpieces, minimizing distortion, and maintaining alignment during the welding process. A well-designed fixture not only enhances the quality of the weld but also reduces cycle times and material waste. In high-volume production environments, even minor improvements in fixture design can lead to significant cost savings and productivity gains.

Key Considerations in Fixture Design
Material Selection: The choice of materials for welding fixtures is crucial. Fixtures must withstand high temperatures, mechanical stress, and exposure to welding spatter. Common materials include hardened steel, aluminium, and composite alloys. Advanced coatings, such as ceramic or thermal-resistant layers, can further extend the lifespan of fixtures.

Modularity and Flexibility: Modern manufacturing demands adaptability. Modular fixture designs allow for quick reconfiguration to accommodate different workpiece geometries. This is particularly beneficial in industries like automotive and aerospace, where product lines frequently change. Incorporating adjustable clamps, interchangeable components, and quick-release mechanisms can significantly reduce downtime.

Precision and Repeatability: Robotic welding systems operate with micron-level precision, and fixtures must match this standard. Designers must account for thermal expansion, vibration, and mechanical deflection during the welding process. Using finite element analysis (FEA) and computer-aided design (CAD) software, engineers can simulate and optimize fixture performance before production.

Integration with Robotics: Fixtures must seamlessly integrate with robotic arms and welding equipment. This includes ensuring proper clearance for robotic movement, aligning with the robot’s coordinate system, and incorporating sensors for real-time monitoring. Collaborative robots (cobots) are increasingly being used, requiring fixtures to accommodate their unique safety and operational requirements.

Ergonomics and Safety: While robotic welding reduces human involvement, fixture design must still prioritize safety. Sharp edges, pinch points, and heavy components should be minimized. Additionally, fixtures should be designed for easy loading and unloading of workpieces, reducing the risk of operator injury.

Emerging Trends in Fixture Design
Smart Fixtures: The integration of IoT (Internet of Things) technology into welding fixtures is a game-changer. Smart fixtures equipped with sensors can monitor clamping force, temperature, and alignment in real-time. This data can be used to predict maintenance needs, optimize welding parameters, and ensure consistent quality.

Additive Manufacturing: 3D printing is increasingly being used to produce custom fixture components. This allows for rapid prototyping, reduced material waste, and the creation of complex geometries that are difficult to achieve with traditional machining methods.

Lightweight Design: With the rise of electric vehicles and lightweight materials, fixtures must adapt to handle new materials like carbon fibre and advanced polymers. Lightweight fixtures made from high-strength alloys or composites can improve energy efficiency and reduce wear on robotic systems.

Sustainability: As industries focus on reducing their environmental impact, fixture designers are exploring eco-friendly materials and processes. Recyclable materials, energy-efficient manufacturing techniques, and designs that minimize material usage are becoming priorities.

Conclusion
The design of robotic welding fixtures is a dynamic field that continues to evolve alongside advancements in robotics, materials science, and manufacturing technologies. By prioritizing precision, flexibility, and innovation, engineers can create fixtures that not only enhance the performance of robotic welding systems but also address the changing new industry. As smart technologies and sustainableandes gain traction, the future of robotic welding fixture design promises to be both exciting and transformative.
