Steel stamping dies are pivotal components in modern manufacturing, playing a crucial role in shaping and forming metal parts with precision and efficiency. These dies are used extensively across various industries, including automotive, aerospace, electronics, and household appliances, to produce a wide array of components. As technology advances, the design and application of steel stamping dies continue to evolve, leading to increased productivity and reduced production costs.

Understanding Steel Stamping Dies
Steel stamping dies are tools used in the metal stamping process to cut or shape metal sheets into specific forms. This process involves placing the metal sheet into a press where the die, typically made of hardened steel, imparts the desired shape through a combination of cutting, bending, and drawing actions. The complexity of the die can range from simple, single-operation tools to sophisticated, multi-stage progressive dies that perform multiple operations in a single press cycle.

Types of Steel Stamping Dies
Single-Station Dies: These dies perform one operation per press cycle, such as cutting or bending. They are ideal for simple parts or low-volume production runs.

Compound Dies: These dies perform two or more operations at a single station with each press stroke. They are useful for more complex parts that require multiple processes, such as cutting and forming simultaneously.

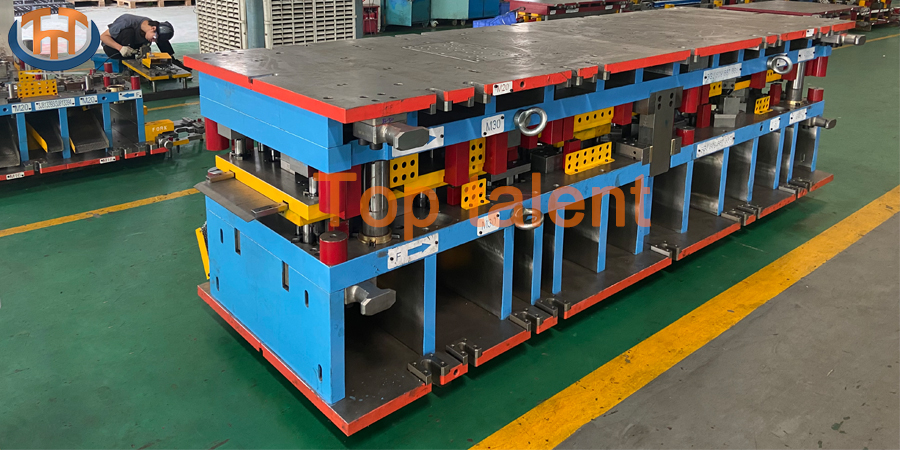

Progressive Dies: In progressive dies, a series of stations perform a sequence of operations on the workpiece as it moves through the die. Each station completes a part of the process, culminating in a finished part at the end of the sequence. This type is highly efficient for high-volume production.

Transfer Dies: These dies involve multiple presses where the workpiece is transferred from one station to another. This method is suitable for parts requiring a combination of processes not feasible within a single die.

Innovations in Die Design and Manufacturing
Advancements in materials science and manufacturing technologies have significantly impacted the design and production of steel stamping dies. Some of the notable innovations include:

High-Strength Materials: Modern dies are often constructed from high-strength tool steels that offer enhanced durability and wear resistance, extending the lifespan of the die and reducing maintenance costs.

Computer-Aided Design (CAD) and Manufacturing (CAM): The integration of CAD and CAM technologies allows for precise and efficient die design. Engineers can create detailed models, simulate the stamping process, and make adjustments before actual production, minimizing errors and material waste.

Additive Manufacturing: Also known as 3D printing, additive manufacturing is being used to create complex die components that are difficult or impossible to produce using traditional methods. This technology also allows for rapid prototyping and customization.

Coatings and Surface Treatments: Advanced coatings and surface treatments, such as titanium nitride (TiN) or diamond-like carbon (DLC), are applied to dies to enhance their performance. These treatments reduce friction, improve wear resistance, and extend the operational life of the dies.

Applications and Benefits
The versatility of steel stamping dies makes them indispensable in various industries. In the automotive industry, for example, they are used to produce components such as body panels, brackets, and structural parts. The aerospace sector relies on stamping dies to produce lightweight and durable parts. In electronics, dies are essential for creating intricate components like connectors and enclosures.

The primary benefits of using steel stamping dies include:

High Precision: Stamping dies ensure consistent and accurate production of metal parts, meeting stringent tolerance requirements.

Cost Efficiency: Once the die is manufactured, the cost per part decreases significantly, making it economical for high-volume production.

Speed: The stamping process is fast and capable of producing a large number of parts in a short period, enhancing overall production efficiency.

Versatility: Steel stamping can be customized to produce a wide range of shapes and sizes, catering to diverse manufacturing needs.

Conclusion
Steel stamping dies are foundational to modern manufacturing, enabling the efficient and precise production of metal parts. Ongoing innovations in materials, design, and manufacturing technologies continue to enhance their performance and applications, ensuring they remain a vital tool in the industrial landscape. As industries evolve, the role of steel stamping dies will undoubtedly expand, driving further advancements in manufacturing capabilities.
