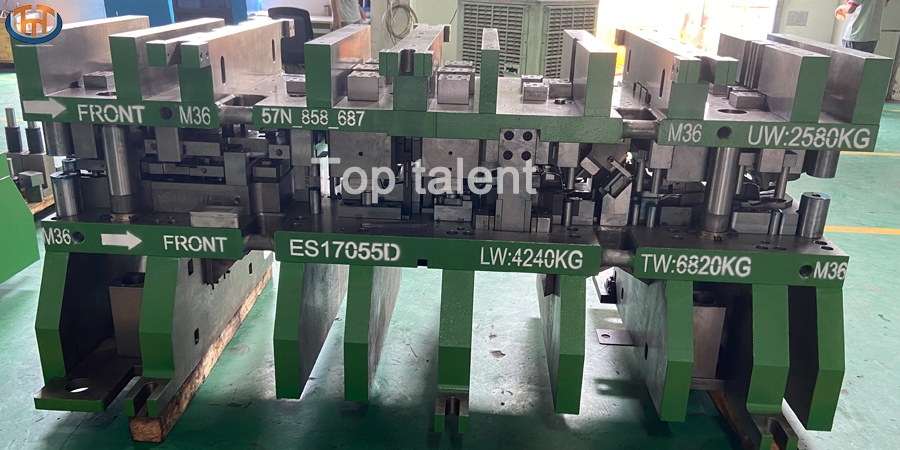

How to Solve Faults in Metal Stamping Tools
Metal stamping tools are crucial for creating precise components, but like any machinery, they can encounter issues that disrupt production. Understanding and addressing these common faults is essential to maintaining efficiency and ensuring quality output. Below are practical steps to resolve frequent problems.

1. Misalignment
Misalignment between the punch and die is a frequent issue that can lead to defective products or damage to the tool. To resolve this:
Regularly inspect and calibrate the tool’s alignment.
Use precision measurement tools to ensure the die and punch are centred.
Install guide posts or bushings to maintain alignment during operation.
2. Tool Wear and Tear
Over time, stamping tools wear down, especially when used with hard materials. To combat wear:
Use materials like tungsten carbide or high-speed steel for longer tool life.
Employ proper lubrication to minimize friction and reduce heat.
Schedule routine sharpening of punches and dies to restore cutting edges.
3. Material Jamming
Material scraps or misfed sheets can jam the tool, leading to downtime. Prevent this by:
Keeping the tool and workstation clean of debris.
Using sensors to detect and eject scrap materials automatically.
Ensuring proper material feeding alignment before starting the process.
4. Cracking or Chipping
Cracks or chips in the die or punch are often caused by excessive force or improper material handling. To avoid this:
Confirm that the tonnage of your press matches the tool’s capacity.
Avoid using brittle tool materials for heavy-duty tasks.
Conduct ultrasonic testing to detect early-stage cracks.
5. Inconsistent Product Dimensions
Product size or shape may stem from incorrect tool settings or worn components. Address this by:

Checking and recalibrating the press settings periodically.
Inspecting components for uniform wear and replacing them as needed.
Proactive maintenance, proper training, and using high-quality materials can significantly reduce the likelihood of faults in metal stamping tools. By addressing these common issues, manufacturers can ensure smooth operations and superior product quality.
