Europe style for Tooling Fixture - Direct Top Manufacturer Car Frt Underbody Checking Fixture – TTM Detail:

Description

  • This is a Checking Fixture which will be used to Frt Underbody
  • This is a Checking Fixture we made for our USA customer.

Function

For Door quality inspection control and support to improve the automotive production line capacity rate

Application fields

Automotive industry quality control
Automotive production line production capacity improve

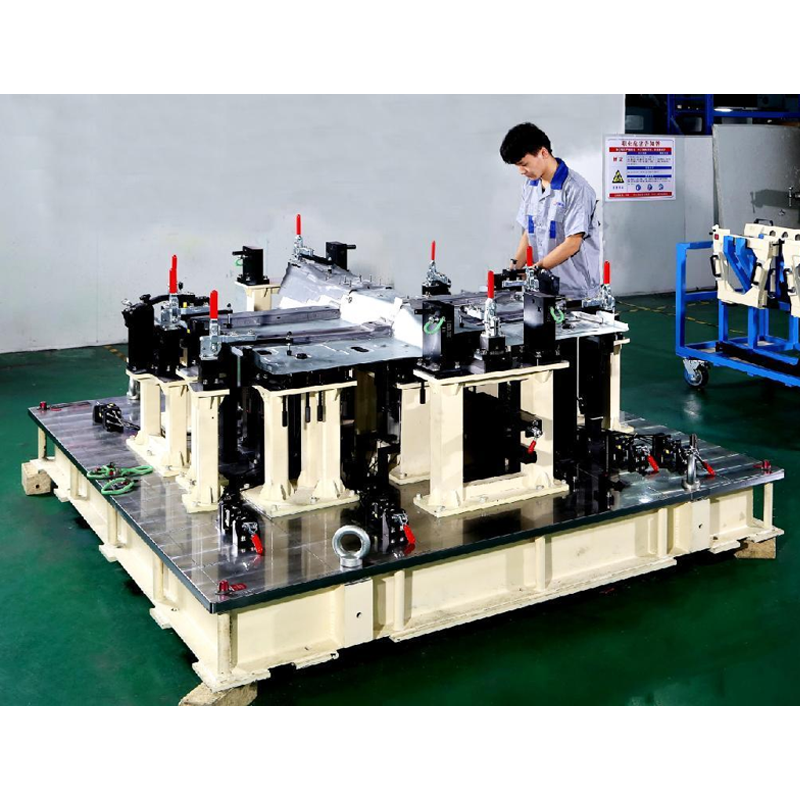

6.1xq

Specification

Fixture Type: Frt Underbody Checking Fixture



Size: 2200*2100*1280
Weight:



2600 kg



Material:





Main Construction: metal

Support: metal



Surface treatment:





Base Plate: Electroplating Chromium and Black Anodized





Detailed Introduction

CX482/483 checking fixture has high measurement accuracy, no fear of deformation, low maintenance cost and good convenience. Key product characteristic inspection, characteristic line inspection, function hole inspection, area detection which is prone to deformation in assembly process, for automobile assembly and production function matching inspection. In the production process of automotive parts, on-line inspection of automotive parts is realized, which ensures the rapid judgment of the quality status of automotive parts in production, ensures the safety and processing speed of automotive assembly, and improves the quality of automotive parts.

The working flow

Received the purchasing order->Design->Confirming the drawing/solutions-> Prepare the materials->CNC–>CMM–> assembling–> CMM–>Inspecting–> (3rd parts inspections if need)-> Package(with wooden)–>delivery

Manufacturing tolerance

1.The Flatness of Base Plate 0.05/1000
2.The Thickness of Base Plate ±0.05mm
3.The Location Datum ±0.02mm
4.The Surface ±0.1mm
5.The Checking Pins and Holes ±0.05mm

Process

CNC Machining(Milling/Turning), Grinding
Electroplating Chromium and Black Anodized Treatment
Design Hours(h):40h
Build Hours(h):150h

Quality Control

CMM (3D Coordinate Measuring Machine), Vms-2515G 2D Projector, HR-150 A Hardness Tester
Third Party Certification done by ShenZhen Silver Basis Testing Technology Co., Ltd , ISO17025 Certified

Lead time & Packing

45 days after 3D design approved
5 days via express: FedEx by Air
Standard Export Wooden Case
We will add fixing wooden block inside cases to make sure fixture safe in shipping. Desiccant and plastic wrap will be used to keep the checking fixture from moisture in shipping.
