Cheap price Chassis Welding - Precision Steel Plate Clamp Chassis Welding Fixture – TTM Detail:

Description

  • This is a welding fixtures which will be used to ISUZU Chassis
  • This is a welding fixtures we made for our :South Africa customer.

Function

For beam quality inspection control and support to improve the automotive production line capacity rate

Application fields

Automotive industry quality control
Automotive production line production capacity improve

Specification

 6.1xqt Fixture Type: Arc Welding Fixture
Project Name: RG 06
Size:1800x1300x900mm
Weight:145KG
Material:Main Construction: metal

Support: metal





Color:

Base Plate: Electroplating Chromium and Black Anodized

The metal Parts: Electroplating Chromium and Black Anodized





Fixture Type: Arc Welding Fixture
Project Name: ISUZU RG 06
Size: 1600x1100x900mm



Weight:



90KG
Material:





Main Construction: metal

Support: metal



Surface treatment:





Base Plate: Electroplating Chromium and Black Anodized





Detailed Introduction

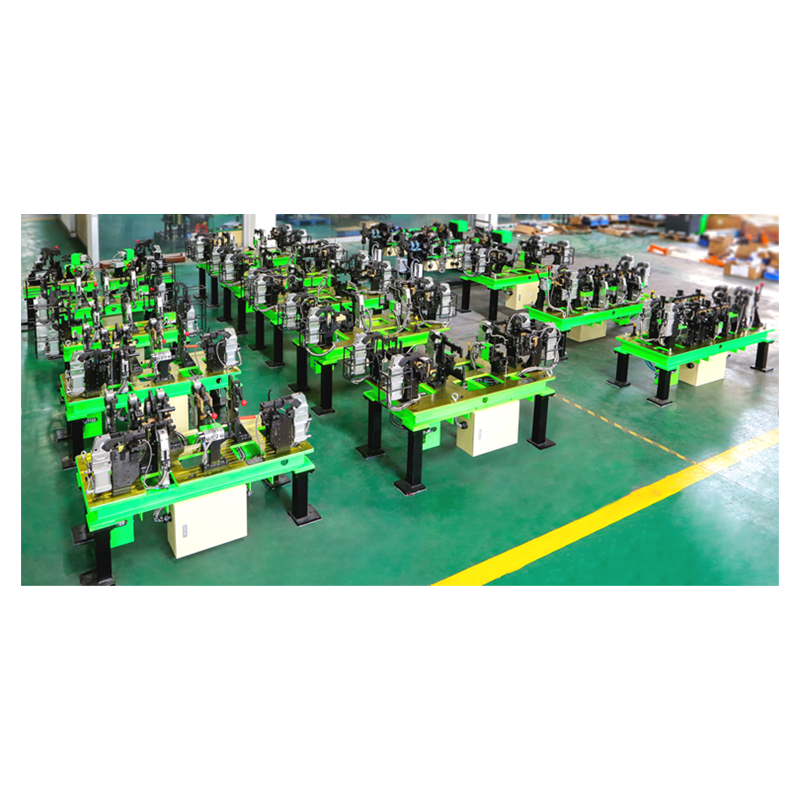

This is a batch of welding fixture of ISUZU Chassis , totally in 35 sets, we made for our South Africa customer. Begin to design, customer came our factory confirm the designing with our design team together.In the process of design, we find that several sets of designs are similar. We offered our customer one set of design first. After receiving their feedback, we well know their specific requirements and preference and then we offer them the left designs. In this way, we reduced the design reviewing times, enhancing efficiency and shortening the delivery. And provide the optimal design plan and structure for customers.

The working flow

Received the purchasing order->Design->Confirming the drawing/solutions-> Prepare the materials->CNC–>CMM–> assembling–> CMM–>Inspecting–> (3rd parts inspections if need)-> Package(with wooden)–>delivery

Manufacturing tolerance

1.The Flatness of Base Plate 0.05/1000
2.The Thickness of Base Plate ±0.05mm
3.The Location Datum ±0.02mm
4.The Surface ±0.1mm
5.The Checking Pins and Holes ±0.05mm

Process

CNC Machining(Milling/Turning), Grinding
Electroplating Chromium and Black Anodized Treatment
Design Hours(h):40h
Build Hours(h):150h

Quality Control

CMM (3D Coordinate Measuring Machine), Vms-2515G 2D Projector, HR-150 A Hardness Tester
Third Party Certification done by ShenZhen Silver Basis Testing Technology Co., Ltd , ISO17025 Certified

Lead time & Packing

45 days after 3D design approved
5 days via express: FedEx by Air
Standard Export Wooden Case
We will add fixing wooden block inside cases to make sure fixture safety in shipping. Desiccant and plastic wrap will be used to keep the checking fixture from moisture in shipping.


Product detail pictures:

Cheap price Chassis Welding - Precision Steel Plate Clamp Chassis Welding Fixture – TTM detail pictures
